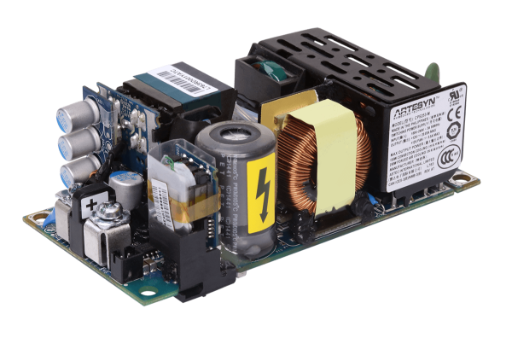

开放式低功率 AC-DC 电源
发布时间: 2025-11-14 16:52
| 系列 | 输出功率 (W) | 输入电压 (VAC) | 输出电压 (VDC) | 隔离电压 (VAC) | 其他特性 | 封装尺寸 (mm) |
| GB10 | 10 | 90-264 | 5, 7.5, 9, 12, 15, 24 | 4000 | IEC/EN/UL60601-1 IEC/EN/UL62368-1 | PCB安装开放式 52x27x23 |
| GB20 | 20 | 90-264 | 5, 7.5, 9, 12, 15, 24, 48 | 4000 | IEC/EN/UL60601-1 IEC/EN/UL62368-1 | 开放式 82x40x24.6 |
| NPS20-M | 25-40 | 90-264 | 5, 12, 15, 24, 48 | 4000 | ES/EN/IEC60601-1 CQC UL/EN/IEC60950-1 | 开放式 101.6x50.8x25.4 |
| GB30 | 30 | 90-264 | 5, 7.5, 9, 12, 15, 18, 24, 48 | 4000 | IEC/EN/UL60601-1 IEC/EN/UL62368-1 | 开放式 92x48x24.7 |
| GB40 | 40 | 90-264 | 5, 9, 12, 18, 24, 48 | 4000 | IEC/EN/UL60601-1 IEC/EN/UL62368-1 | 开放式 101.6x50.8x24.8 |
| NPS40-M | 40-60 | 90-264 | 5, 12, 15, 24, 48 | 4000 | ES/EN/IEC60601-1 CQC UL/EN/IEC60950-1 | 开放式 101.6x50.8x25.4 |
| NPT40-M | 45-55 | 90-264 | 5/12/-12, 5/15/-15, 5/24/12 | 4000 | ES/EN/IEC60601-1 CCC EN/IEC62368 | 开放式 101.6x50.8x26 |
| NPS60-M | 60 | 90-264 | 5, 12, 15, 24 | 4000 | ES/EN/IEC60601-1 CCC UL/EN/IEC62368-1 | 开放式 101.6x50.8x26 |
| GB60 | 60 | 90-264 | 12, 15, 24, 48 | 4000 | IEC/EN/UL62368-1 | 开放式 76.2x50.8x31 |
| MB60 | 60 | 90-264 | 12, 15, 18, 24, 36, 48 | 4000 | IEC/EN/ES60601-1 | 开放式 76.2x50.8x31 |
| LPS60 | 60-80 | 85-264 | 3.3, 5, 12, 15, 24, 48 | 3000 | UL/EN/IEC62368-1 CCC | 开放式 127x76.2x44.9 |
| MB65 | 65 | 90-264 | 12, 15, 18, 24, 28, 32, 48 | 4000 | IEC/EN/ES60601-1 | 开放式 88.9x50.8x33.1 |
| MINT1065 | 65 | 90-264 | 12, 13.2, 15, 18, 20, 24, 48 | 4000 | IEC/EN/UL60601-1 IEC/EN/UL62368-1 | 开放式 101.6x50.8x29.5 |
| SLB65 | 65 | 80-264 | 5, 12, 15, 18, 24, 48 | 4000 | IEC/UL60601-1 IEC/UL62368-1 | 开放式 76.2x50.8x31.6 |
| LPT100-M | 80-130 | 90-264 | 3.3/5/12, 5/12/-12, 5/15/-15, 5/24/12 | 4000 | ES/EN/IEC60601-1 UL/EN/IEC62368-1 | 开放式 101.6x50.8x32.7 |
| LPS100-M | 80-150 | 90-264 | 5, 12, 15, 24, 48, 54 | 4000 | ES/EN/IEC60601-1 EN/IEC62368-1 | 开放式 101.6x50.8x33 |
| TLP150 | 100-150 | 85-264 | 12, 24 | 4000 | IEC/EN60601-1 UL/EN/IEC60950-1 | 开放式 127x76.2x31.8 |
| TLP150-M | 100-150 | 85-264 | 12, 24 | 4000 | IEC/EN60601-1 UL/EN/IEC60950-1 | 开放式 127x76.2x31.8 |
| LPQ200-M | 100-200 | 90-264 | 3.3/5/12/-12, 5/12/24/-12 | 4000 | ES/EN/IEC60601-1 UL/EN/IEC62368-1 | 开放式 101.6x50.8x36.1 |
| MINT1110A | 110 | 90-264 | 12, 15, 18, 24 | 4000 | IEC/EN/ES60601-1 | U型壳 127x76.2x32.3 |
| MINT3110 | 110 | 90-264 | 5/12/-12, 5/15/-15, 5/24/-24 | 4000 | IEC/EN/ES60601-1 | 开放式 101.6x50.8x35.5 |
| CINT3110 | 110 | 90-264 | 5/12/-12, 5/15/-15, 5/24/-24 | 4000 | IEC/EN/UL62368-1 | 开放式 101.6x50.8x35.5 |
| LB115S | 115 | 90-264 | 12, 24, 48, 56 | 3000 | IEC/EN/UL62368-1 | 开放式 101.6x50.8x36.6 |
| MB120 | 120 | 80-264 | 12, 15, 18, 24 | 4000 | IEC/EN/ES60601-1 | 开放式 101.6x50.8x37.2 |
| SLB125 | 125 | 90-264 | 12, 15, 18, 24, 36, 48, 56 | 4000 | IEC/EN/UL60601-1 IEC/EN62368-1 | 开放式 101.6x50.8x36.6 |
| LPS200-M | 125-250 | 90-264 | 5, 12, 15, 24, 48 | 4000 | ES/EN/IEC60601-1 EN/IEC62368-1 | 开放式 127x76.2x36.1 |
| LB130S | 130 | 90-264 | 56 | 3000 | IEC/EN/UL62368-1 | 开放式 127x76.2x36.6 |
| GB130Q | 130 | 90-264 | 5/12/-12/12, 5/12/-15/15, 5/24/-12/12, 5/24/-15/15, 5/24/-12/12 | 4000 | IEC/UL60601-1 IEC/UL62368-1 | 开放式 127x76.2x36.6 金属壳 135.5x80.8x45.4 |
| NCF150 | 150 | 85-264 | 12, 15, 19, 24, 36, 48 | 4000 | IEC/EN/UL60601-1 CF | 开放式 101.6x50.8x34.6 |
| NGB150 | 150 | 85-264 | 12, 15, 19, 24, 36, 48 | 4000 | IEC/UL60601-1 IEC/EN62368-1 | 开放式 101.6x50.8x34.6 |
| MINT1150 | 150 | 90-264 | 12, 15, 24, 48, 56 | 4000 | IEC/EN/ES60601-1 | 开放式 101.6x50.8x35.5 |
| CINT1150 | 150 | 90-264 | 12, 24, 48, 56 | 4000 | IEC/EN/UL62368-1 | 开放式 101.6x50.8x35.5 |
| MINT1175 | 175 | 90-264 | 12, 15, 24, 48, 56 | 4000 | IEC/EN/ES60601-1 | 开放式 101.6x50.8x35.5 |
| CINT1175 | 175 | 90-264 | 12, 15, 24, 48, 56 | 4000 | IEC/EN/UL62368-1 | 开放式 101.6x50.8x35.5 |
| MINT1180 | 180 | 90-264 | 12, 15, 18, 24, 28, 32, 36, 48 | 4000 | IEC/EN/UL60601-1 IEC/EN/UL62368-1 | 开放式 127x76.2x36.6 |
| CINT1200 | 200 | 90-264 | 12, 15, 18, 24, 28, 32, 36, 48 | 4000 | IEC/EN/UL62368-1 | 开放式 127x76.2x36.6 |
| LPS360-M | 200-360 | 90-264 | 12, 15, 24, 36, 48 | 4000 | ES/EN/IEC60601-1 CCC UL/EN/IEC62368-1 PMbus | 开放式 127x76.2x39.6 |
| LU225 | 225 | 90-305 | 12, 24, 36, 48, 56 | 3000 | IEC/EN/UL62368-1 | L型壳 105.6x56.2x38.1 |
| LB240S | 240 | 90-264 | 24, 48, 56 | 3000 | IEC/EN/UL62368-1 | 开放式 127x76.2x36.6 |
| NCF250 | 250 | 85-264 | 12, 15, 19, 24, 48, 56 | 4400 | IEC/EN/UL60601-1 CF IEC/UL/EN62368-1 | 开放式103x54.1x38.1 金属壳109x62.4x44.9 |
| CPS250-M | 250 | 90-264 | 12, 24, 48 | 4000 | ES/IEC/EN60601-1 UL/EN/IEC62368-1 | 开放式 2"x4"x1.3" |
| MINT1275 | 275 | 90-264 | 12, 15, 24, 48, 56 | 4000 | IEC/EN/ES60601-1 | 开放式 127x76.2x35.5 |
| CINT1275 | 275 | 90-264 | 12, 15, 24, 48, 56 | 4000 | IEC/EN/UL62368-1 | 开放式 127x76.2x35.5 |
| SLB300 | 300 | 85-264 | 12, 15, 18, 24, 36, 48, 56 | 4000 | IEC/EN/UL60601-1 IEC/EN/UL62368-1 | 开放式 127x76.2x34.9 |
| SLB350 | 350 | 90-264 | 12, 24, 48, 56 | 3000 | IEC/EN/UL62368-1 | 开放式 127x76.2x36 |
| LGU350 | 350 | 90-305 | 24, 48, 56 | 3000 | IEC/EN/UL60950-1 | 开放式 127x76.2x33.6 |
| NCF425 | 425 | 85-264 | 12, 24, 48 | 4500 | IEC/EN/UL60601-1 CF | U型壳 152.4x88.9x38.1 |
| NGB425 | 425 | 85-264 | 12, 15, 24, 48 | 4000 | IEC/EN/UL60601-1 IEC/EN/UL62368-1 | U型壳 127x76.2x38.1 |
| MINT1500 | 500 | 90-264 | 24, 48, 56 | 4000 | IEC/EN/UL60601-1 IEC/EN/UL62368-1 | U型壳 177.8x83.8x38.2 |
| LU500 | 500 | 90-305 | 12, 24, 48 | 3000 | IEC/EN/UL62368-1 | U型壳 184.2x101.6x55.9 |
| CNS650-MU | 650 | 90-264 | 12, 24, 48 | 4000 | ES/IEC/EN60601-1 UL/EN/IEC62368-1 | 开放式 152.4x96.8x36.6 U型壳 152.4x101.6x39.2 风扇金属壳 177.8x101.6x40 |
| NCF660 | 660 | 85-264 | 12, 15, 24, 48 | 4500 | IEC/EN/UL60601-1 CF | U型壳 178x101.6x40.6 |
| NGB660 | 660 | 85-264 | 12, 15, 24, 48 | 4000 | IEC/UL60601-1 IEC/62368-1 | U型壳 152.4x101.6x39.4 |
| NGB800 | 800 | 80-264 | 12, 15, 24, 48 | 4000 | IEC/EN/UL60601-1 IEC/EN/UL62368-1 | U型壳 203.2x127x40.6 |
